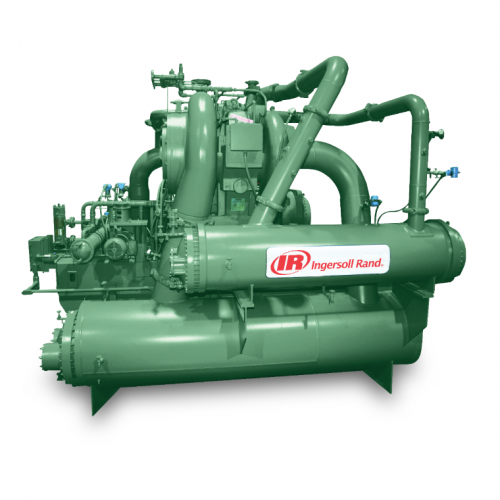

The MSG TURBO-AIR 20000 is a custom-engineered centrifugal compressor built for individual customer needs for a variety of applications. It is particularly well-suited for multi-stage, dual-process applications.
FEATURES
MSG® TURBO-AIR® INTEGRALLY GEARED CENTRIFUGAL COMPRESSORS
MSG TURBO-AIR compressors offer outstanding design flexibility. MSG compressors are application engineered with numerous available configurations:
• Flows from 70 to 3800 m3/min (2500 to 135,000 CFM)
• Input capacity to over 18,650 kW (25,000 hp)
• Discharge pressures to 100 barg (1450 psig)
FEATURES
Oil-Free Air and Gas
• Prevents system contamination
• Reduces the potential for compressed air pipeline fires caused by oil carryover
• No costly waste disposal associated with oil-laden condensate
• Eliminates the expense and maintenance of oil separation filters at the discharge
High Reliability
• MSG TURBO-AIR centrifugal compressors are designed to be extremely
reliable due to:
o Conservative high-quality gear design
o Long-life pinion bearing design
o Thrust loads absorbed at low speed
o Stainless steel compression elements
Low Compressor Operating Life Cycle Cost
MSG TURBO-AIR centrifugal compressors provide better overall operating efficiency than positive displacement or other centrifugal compressors.
• Excellent efficiencies at full load, part load and no load
• Low maintenance cost
• Increased uptime from high-reliability design (limits the need for multiple unit installations for basic reliability reasons)
• No sliding or rubbing parts in the compression process that can cause wear and thereby efficiency loss
APPLICATIONS
Engineered Air Applications
• Industrial gases
• Instrument air
• American Petroleum Institute (API) standards
• Soot blowers
• Large plant air
• Power industry related
Gas Compressor Applications
• Fuel gas boosting
• Natural gas gathering
• Hydrocarbon refrigeration gas
• Carbon monoxide
• CO2 (wet or dry)
• SynGas
• Low molecular weight recycle gas
• High-pressure nitrogen
• Landfill gas
GAS FLOW ARRANGEMENT
MSG TURBO-AIR centrifugal compressors feature an advanced arrangement of gas flow components. Advantages of this arrangement include:
• Directed gas movement to reduce turbulence induced friction
• Air is cooled after every stage to provide high isothermal efficiency
Air Flow Diagram
01: Compressor inlet
02: First-stage compressor volute
03: Coolant in
04: Coolant out
05: First-stage intercooler
06: Second-stage compressor volute
07: Second-stage intercooler
08: Third-stage compressor volute
09: Compressor discharge
